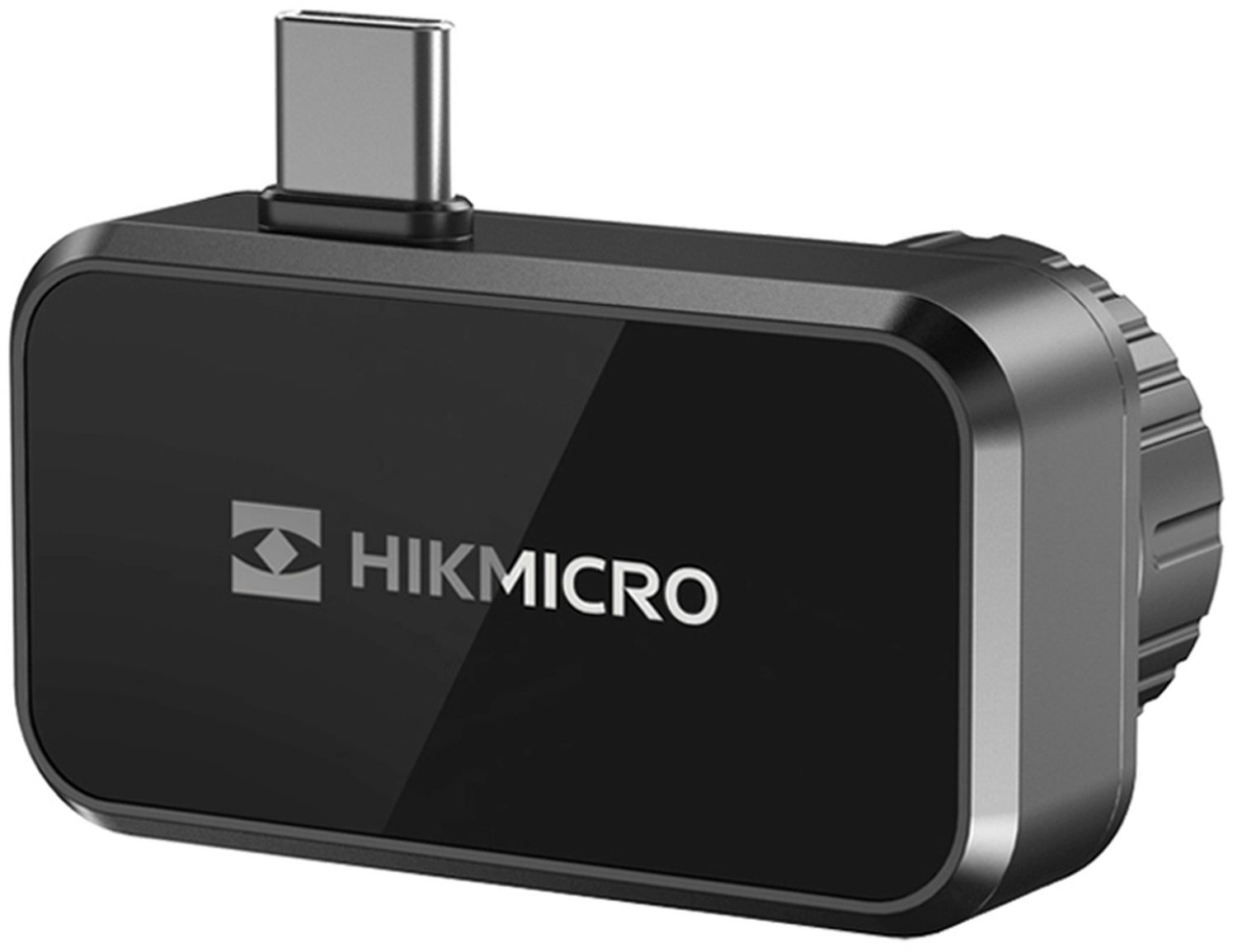

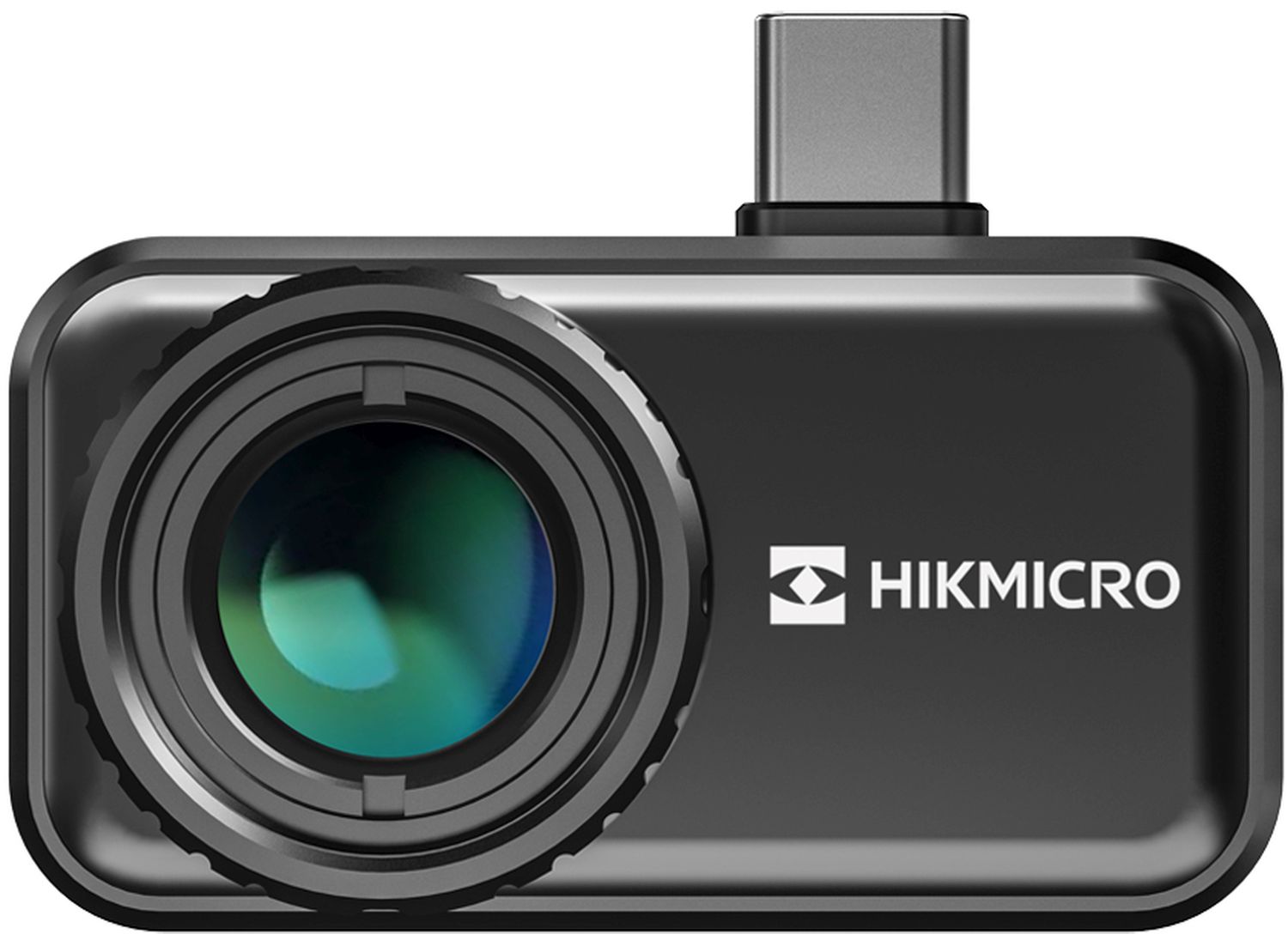

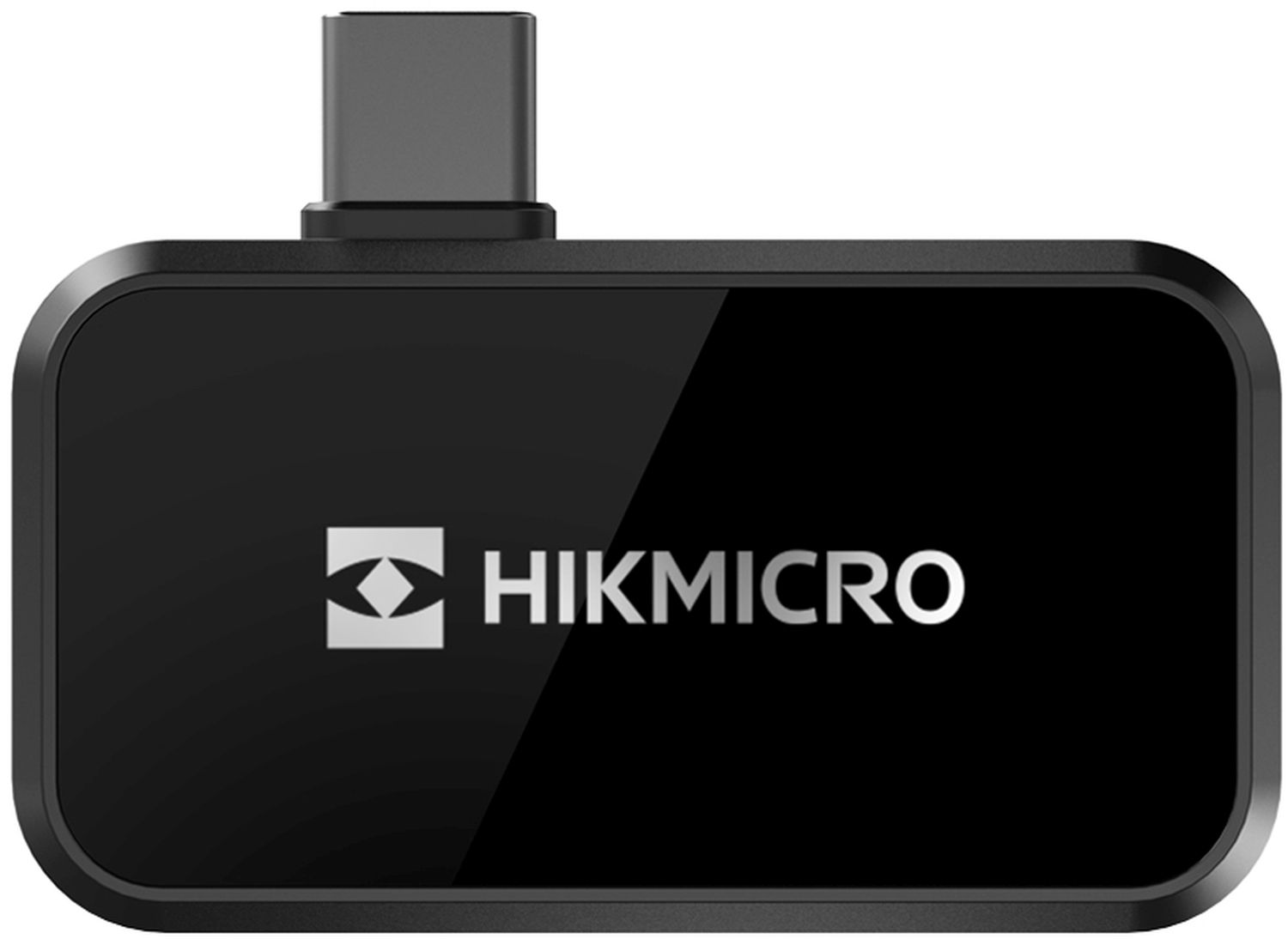

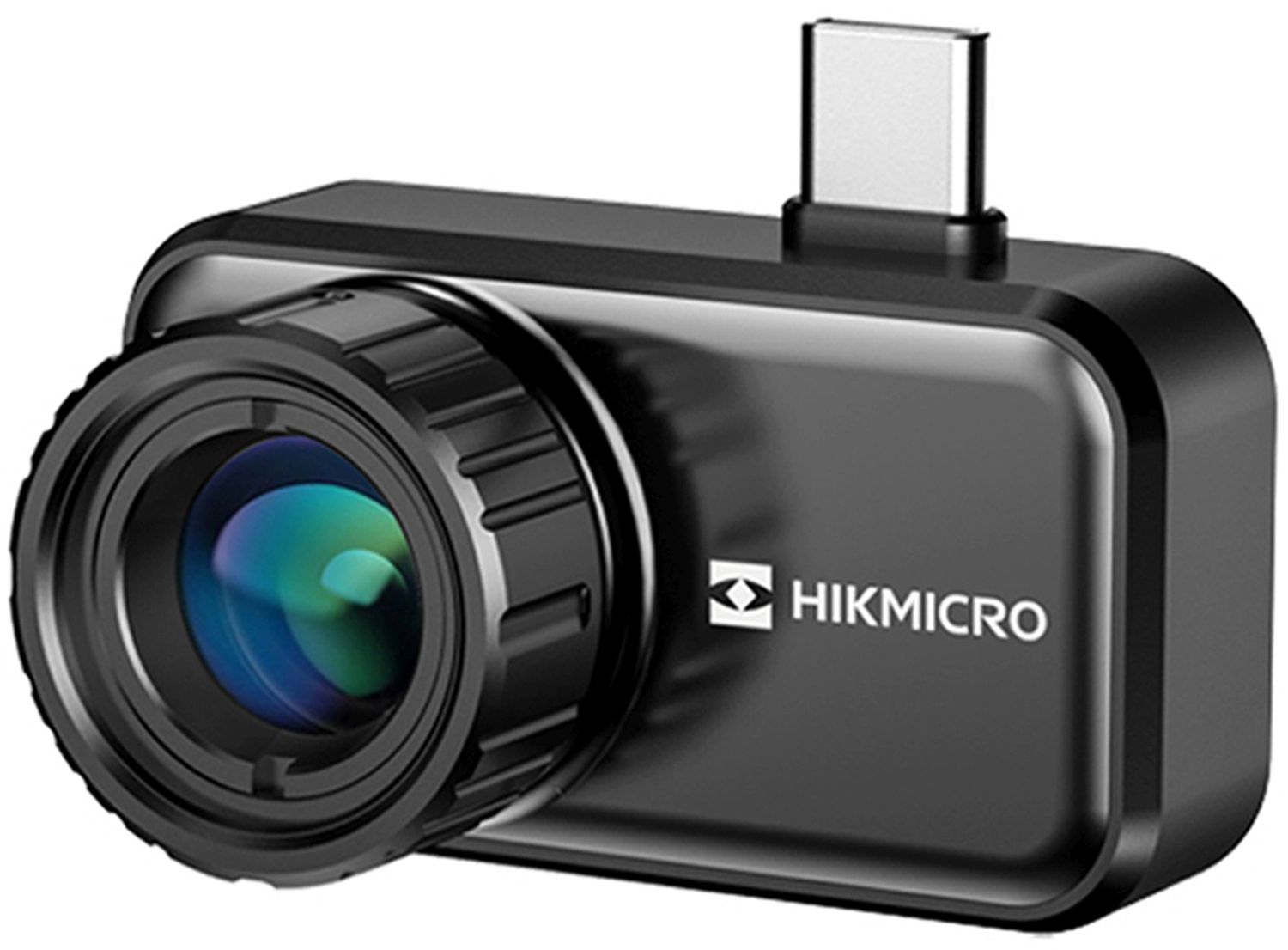

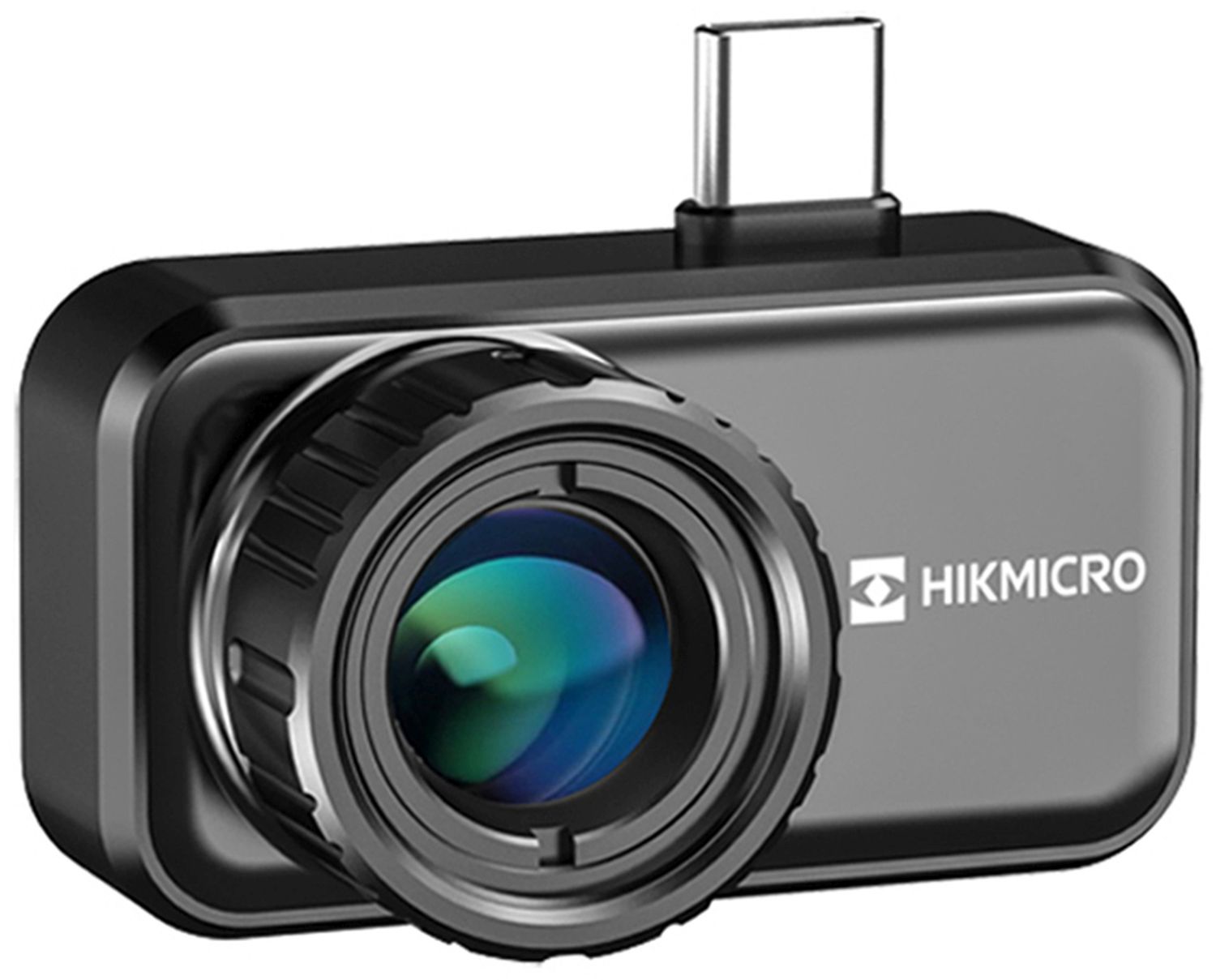

The HIKMICRO Mini 3 thermal imaging camera is a compact smartphone module for Android devices that enables precise thermal image analysis. Ideal for inspecting electrical installations and diagnosing HVAC systems, it delivers detailed thermal images directly to your smartphone.
The HIKMICRO Mini 3 thermal imaging camera transforms your Android smartphone into a powerful thermal imaging device. Thanks to the high resolution of 384 × 288 pixels, it produces clear and meaningful thermal images that make even the smallest temperature differences visible. With a field of view of 26° × 19°, the device is ideal for targeted inspections from short to medium distances. The manual focus allows flexible adjustment to different measuring situations and ensures precise results. The very high thermal sensitivity (NETD < 30 mK) ensures that even minimal temperature deviations are reliably detected. The wide measuring range from -20 °C to 650 °C covers a variety of applications - from building diagnostics to industrial plant inspections. Thermal images can be displayed, analyzed and documented in real time via the integrated smartphone app. Connection is straightforward via the modern USB-C interface. With an image frequency of up to 50 Hz, dynamic temperature changes can also be displayed smoothly.
| General | |
|---|---|
| Type | Thermal imaging camera |
| Electronics | |
|---|---|
| Focusing | Manual focus |
| Lens | |
|---|---|
| Focal length | 10 mm |
| Power Supply | |
|---|---|
| Charger included | Nein |
| Maximum charging power | 999 W |
| Minimum charging power | 1 W |
| Power Delivery (PD) | Ja |
| Dimensions | |
|---|---|
| Dimensions | 47.6 x 26 x 26.59 mm |
| Weight (incl. battery and memory card) | 45 g |
| Other features | |
|---|---|
| Functions | IR resolution: 384× 288 (110 592 pixels), NETD: ≤35 mK (@ 25 °C, F#=1.0), pixel pitch: 12μm, field of view (FOV): 26° × 19°, minimum focus distance: 0.3 m |
| Interesting | Color palette: White hot, Black hot, Rainbow, Ironbow, Sepia, Color, Ice fire, Rain, Red hot, Green hot, Dark blue, Combined Picture modes: Thermal |
| Connectivity | USB Type C |
| other functions | Power consumption: 550 mW, Drop test height: 1 m, Measuring tools: Central point, Hot point, Cold point, Customizable: 3 points, and 3 rectangles |
