NANLITE Alien 300C full-color multifunctional area lights

NANLITE Alien 300C full-color multifunctional floodlights

With special light mixing technology and optical lens in front of each LED for uniform, very bright illumination (28630 lux at a distance of 1 m at 5600 Kelvin) with very high color rendering quality. Provides the illumination types white light with variable color temperature 2700 - 12000 Kelvin and green/magenta correction as well as colored light by selection from the color spectrum or by additive color mixing or selection of XY coordinates from the CIE standard color chart or by using predefined color filters/gel filters. Special, customizable special effects. Dimmable. Complete settings can be saved and recalled as required. Operation via separate control unit with large color display or remote control via Bluetooth, radio, DMX/RDM or LumenRadio CRMX. Protection class IP55. Mounting bracket. Multi-stage cooling fan that can be switched off. Mains operation or battery operation.

White light

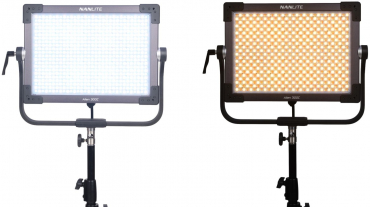

Color temperature adjustable in 100 Kelvin steps from 2700 Kelvin to 12000 Kelvin, high color rendering index: CRI: 96, TLCI: 97

Green/magenta correction

150 to +150. Flicker-free light without infrared and UV components.

Two power modes adjustable

either maximum brightness or constant brightness when changing the color temperature.

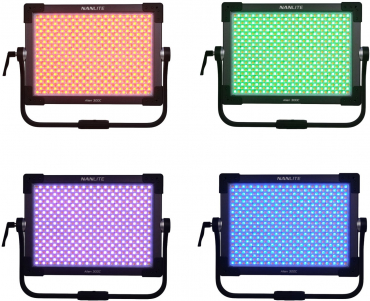

Colored light

for setting color accents in portraits, product photos and film scenes, for example, or for creating lighting moods with a color-illuminated background. Can be set in four different ways:

HSI mode

By selecting one of 360 different colors of the visible spectrum with additional adjustable color saturation from 0 to 100 %. 36000 color tones can be displayed.

RGBW mode

(additive color mixing): A value from 0 to 255 can be selected for each of the primary colors red, green and blue as well as for white.

XY coordinate mode

The color can be set directly using the XY coordinates of the CIE standard color chart.

Gel mode

460 pre-programmed color filters/gel filters (LEE, ROSCO) are available, each with a light source of 3200 K or 5600 K.

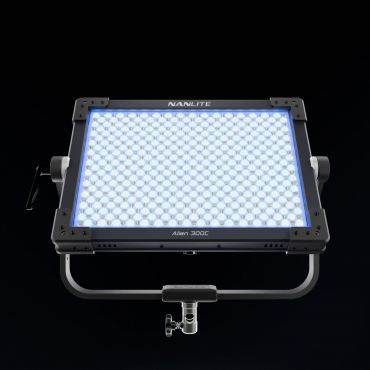

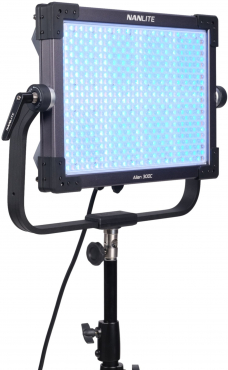

Particularly high light output and uniform illumination

thanks to special light mixing technology, special arrangement of the LEDs and optical lens in front of each LED.

15 special effects

Endless loops with color, color temperature or brightness change, flashing with white light or color tone, pulsing with white light or color tone, thunderstorm simulation with whitee flash sequences, police light, TV simulation, by random, frequent brightness changes, lightning storm, candlelight/fire, light show simulation, simulation of a defective lamp, fireworks, explosion flashes, welding light simulation. All special effects can be individually adjusted.

Brightness control

The brightness can be adjusted linearly from 0 % to 100 %, either in 0.1 % increments, in 1 % increments or in 0.1 % increments below 10 % and then in 1 % increments. At the touch of a button, you can switch between set brightness and switched-off light without having to switch the light off completely.

PRESET function

For recurring scenes, presets such as color temperature/color, brightness and special effect parameters can be saved and** recalled as required.

LOCK function

All current settings can be locked against unintentional adjustment at the touch of a button.

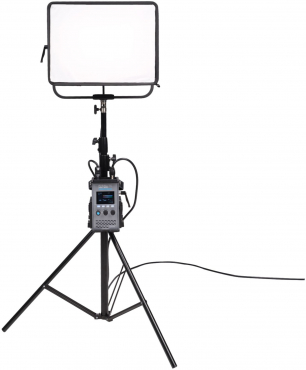

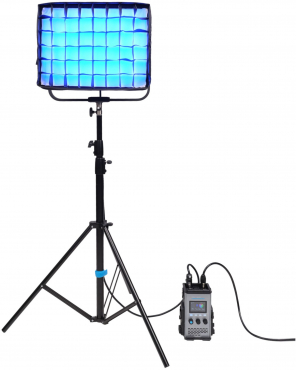

Separate control unit

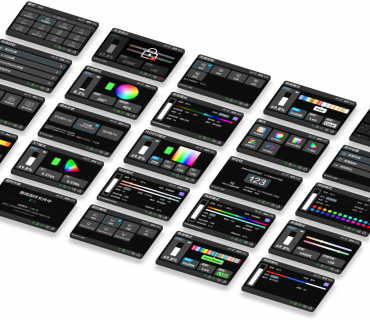

Control panel with three rotary controls and four quick selection buttons, large 3.2" color display. Clear user interface with intuitive icons and only the most necessary text information.

Connections for two V-mount batteries, DMX-IN and DMX-OUT, 48 V DC, etc. USB socket for firmware update. Carrying handle. Attachment of the control unit to the light stand using the supplied stand clamp with quick-release coupling. Incl. rain cover for the control unit.

Multiple control options

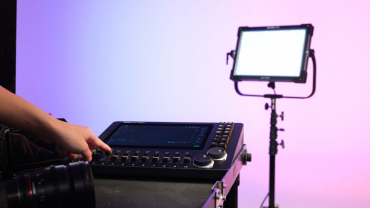

In addition to operation on the control unit, remote control via Bluetooth, radio (2.4 GHz), DMX/RDM with numerous DMX modes and setting options or LumenRadio CRMX for stable wireless DMX control.

Bluetooth with NANLINK APP. Wireless with wireless remote control WS-RC-C2 (optional accessory) or with NANLINK Box WS-TB-1 (optional accessory) via NANLINK APP. NANLINK APP available free of charge for iOS in the APP Store, for Android on Google Play.

Low-noise cooling fan

for continuous operation. Several levels adjustable:
SMART, max. brightness 100 %, fan speed is automatically regulated depending on the ambient temperature. On average only 19 dBA,
FULL SPEED, max. brightness 100 %,
LOW SPEED, max. brightness 50 %,
PAUSE, max. brightness 100 %, automatic switchover to SMART mode when critical temperature is reached,
OFF, max. brightness 15 %.
Suitable for close-range video recordings.

Mains operation

via control unit (AC 100-240 V, 50/60 Hz) or power supply with 48 V DC (connection on the control unit).

Battery operation

for mobile use with one or two V-mount batteries (14.4 - 14.8 V / 26 - 28 V, optional accessories). Attachment to the control unit.
Maximum brightness 45 % with one V-mount battery 14.4 - 14.8 V, 75 % with one V-mount battery 26 - 28 V or 100 % with two V-mount batteries 14.4 - 14.8 V or two V-mount batteries 26 - 28 V or one V-mount battery 14.4 - 14.8 V together with one V-mount battery 26 - 28 V.

Hot swapping

If the light is already in operation, the power supply can be changed without having to switch off the light and thereby interrupting operation.

Light metal housing

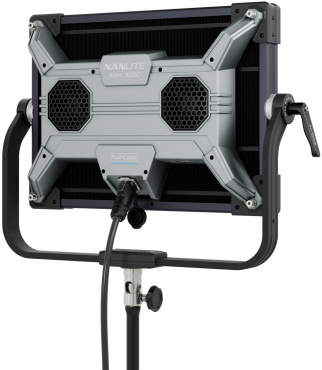

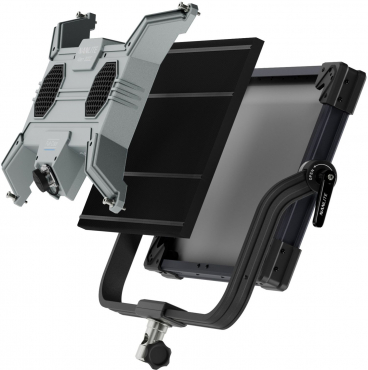

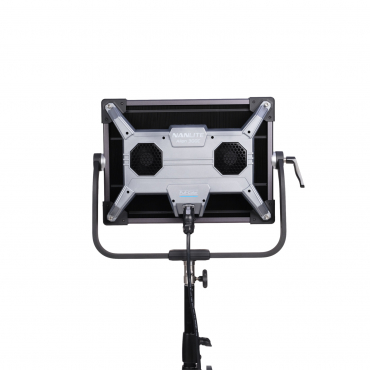

with reinforced corners, robust and durable. With large aluminium alloy heat sink and two fans in plastic housing at the rear for efficient heat dissipation.

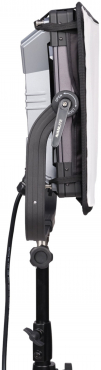

Specially shaped mounting bracket

for stepless swivelling of the luminaire. Single-lever locking mechanism. Aluminum. Attachment to suitable stands and brackets with 16 mm (5/8") standard pin (baby pin) or 28 mm standard sleeve (junior pin).

Protection class IP55 (luminaire)

Protected against dust in damaging quantities and against water jets (nozzle) from any angle. Can therefore also be used without restriction in rain, snow or dusty environments. An additional rain cover is included for the control unit (IP20).

Self-locking plugs

on the connection cable and mains cable ensure a secure and fast connection.

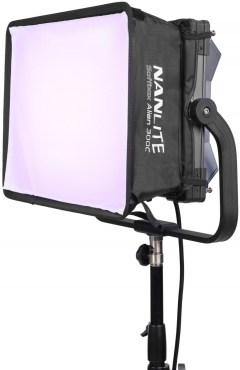

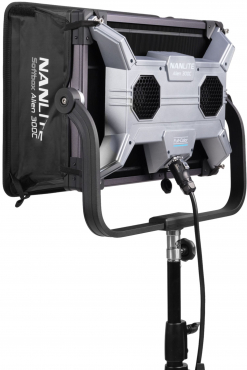

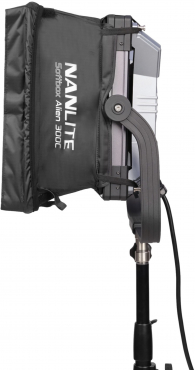

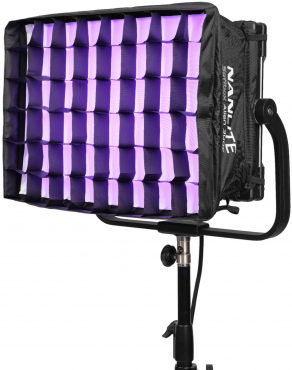

Pop-up softbox

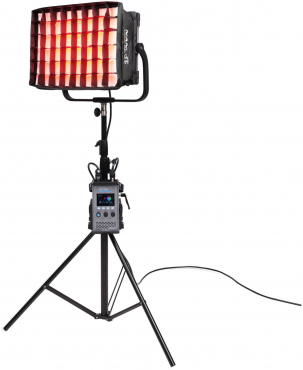

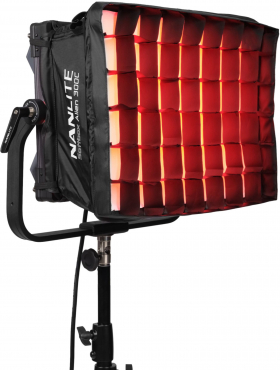

Simple attachment to the luminaire housing with elastic straps. Patented mechanism for quickly erecting the mounted softbox and folding it up just as quickly at the front of the light. This means that the softbox can remain mounted even when the light is stored in the transport case. Incl. standard and lite diffuser and removable fabric honeycomb

. Firmware update

via USB port.

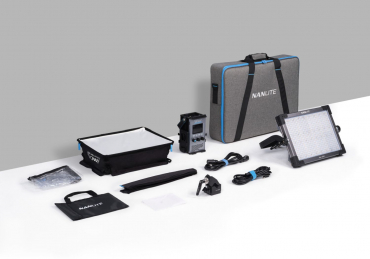

Padded transport case

with removable dividers, mesh pocket in the lid, carrying handle and shoulder strap with shoulder pad and anti-slip protection.
