Blackmagic Camera ProDock

Blackmagic Camera ProDock

The dock offers you connections for HDMI monitoring, microphone, headphones, genlock and USB ports for external drives. It also supplies power. With professional BNC connectors, the Blackmagic Camera ProDock supports external genlocking and timecode to keep all your cameras in sync. Use three USB-C ports to connect external control devices and external SSDs for recording. Power management ensures that everything runs simultaneously.

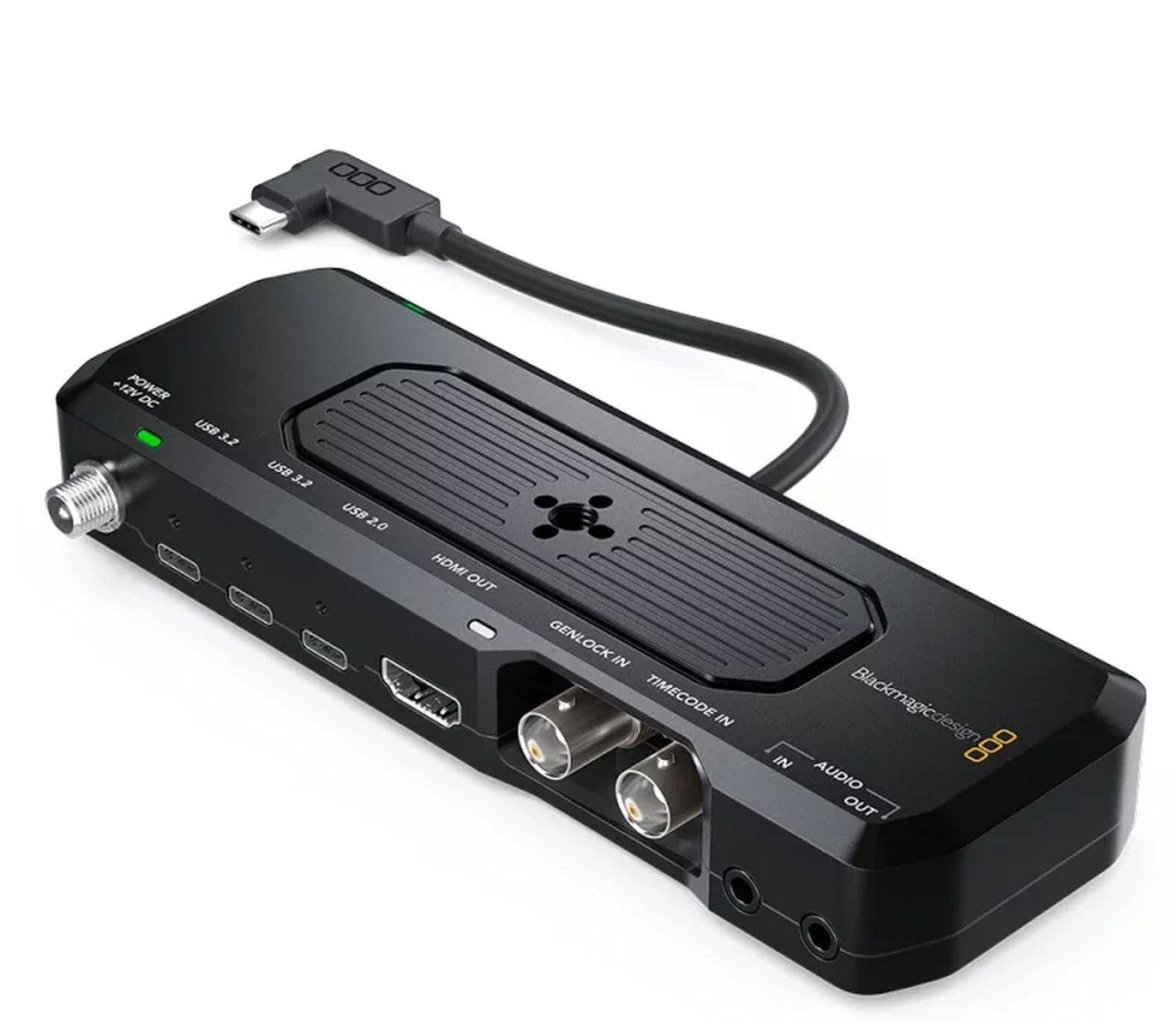

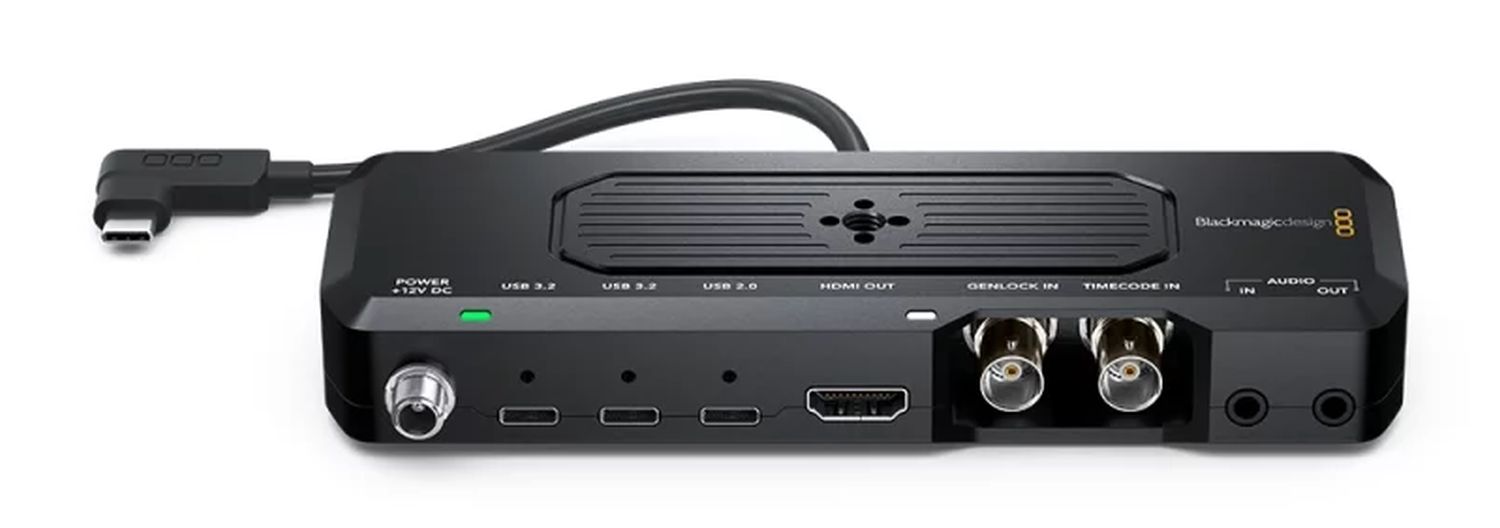

Connections

• HDMI video outputs: 1 HDMI 2.1 Type A connector, output resolution and frame rate are set up in Blackmagic Camera for iOS
• Audio inputs: 1x 3.5mm stereo mini jack
• Audio outputs:
• 1x 3.5mm stereo mini jack
• Timecode inputs: 1 BNC, 1x 3.5mm audio input supports incoming timecode
• Genlock inputs:
• 1 BNC, tri-sync or black burst
• USB-C ports: 2 USB 3.2 high-speed ports for recording to external media; 1 USB 2.0 port for accessories
• Power: DC input for +12V to +15V with lockable 5.5mm connector for hollow plug
• iPhone connection: 1 USB-C cable and plug

Audio

• Microphones: External microphones are connected via the 3.5mm stereo mini jack or the USB-C ports
• Monitor: Headphones are connected to the 3.5mm stereo mini jack (output)

media

• Media: Record Blackmagic Camera clips to the internal iPhone memory or to external data carriers connected via USB

Screens

• Status indicators: 1 LED power indicator, 1 LED indicator for the front tally, 1 LED genlock indicator
