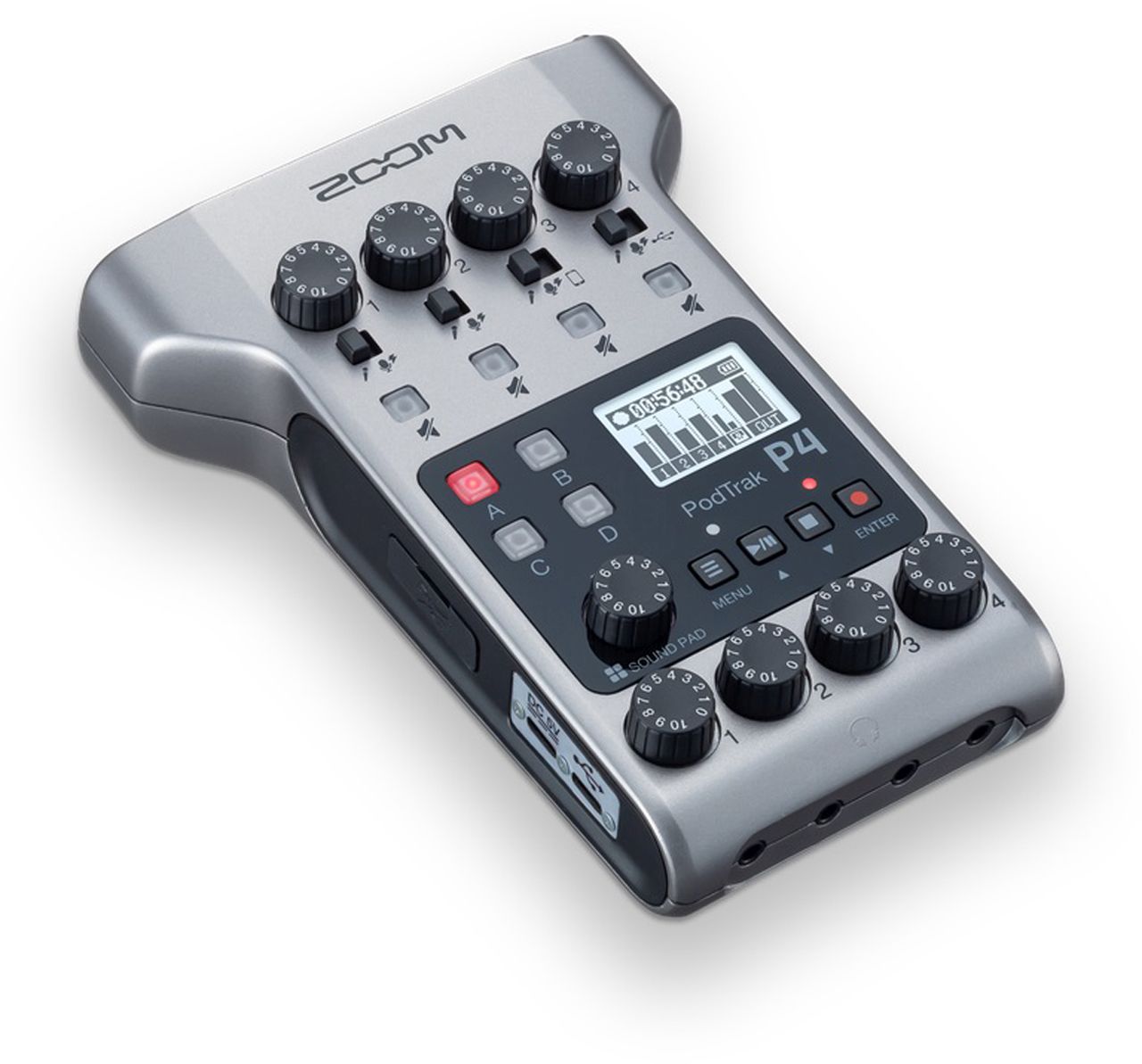

Zoom P4 Podcaster Recorder

Zoom P4 Podcaster Recorder

The ultimate recorder for podcasting
With its compact size, affordable price and a wealth of built-in features, the PodTrak P4 presents itself as a simple solution for mobile podcast recording in professional audio quality.
The microphone inputs of the P4 are equipped with professional Zoom preamps. With up to 70 dB gain, they are recommended for use with the most demanding microphones.

• Number of input channels 4 (mono/stereo)
• Number of output channels 2 (4 stereo headphone outputs).
• Connectors:

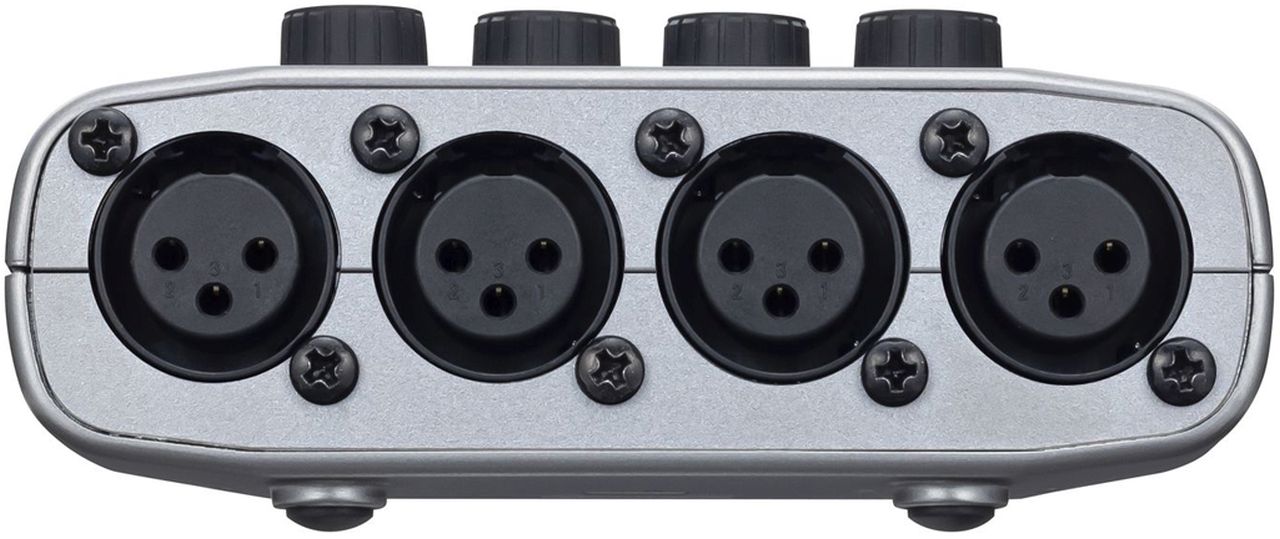

• MIC XLR jacks (pin 2: +phase).
• Smartphone connection jack. TRRS mini jack (4 contacts, tip: L, RING1: R, RING2: GROUND, SHIELD: MIC).

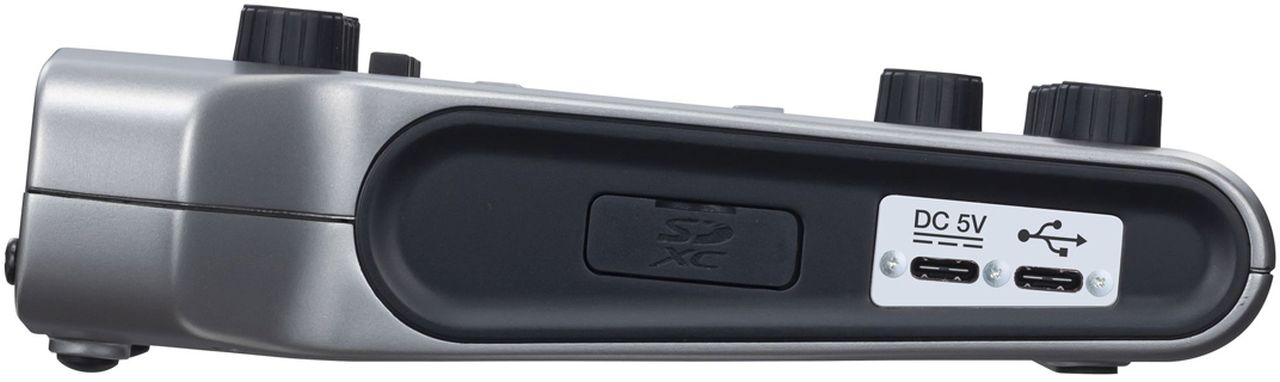

• USB USB Type-C (audio interface and mass storage operation).
• Note: Use a USB cable that supports data transfer. USB power supply is supported.
• DC 5 V USB Type-C (for power supply)

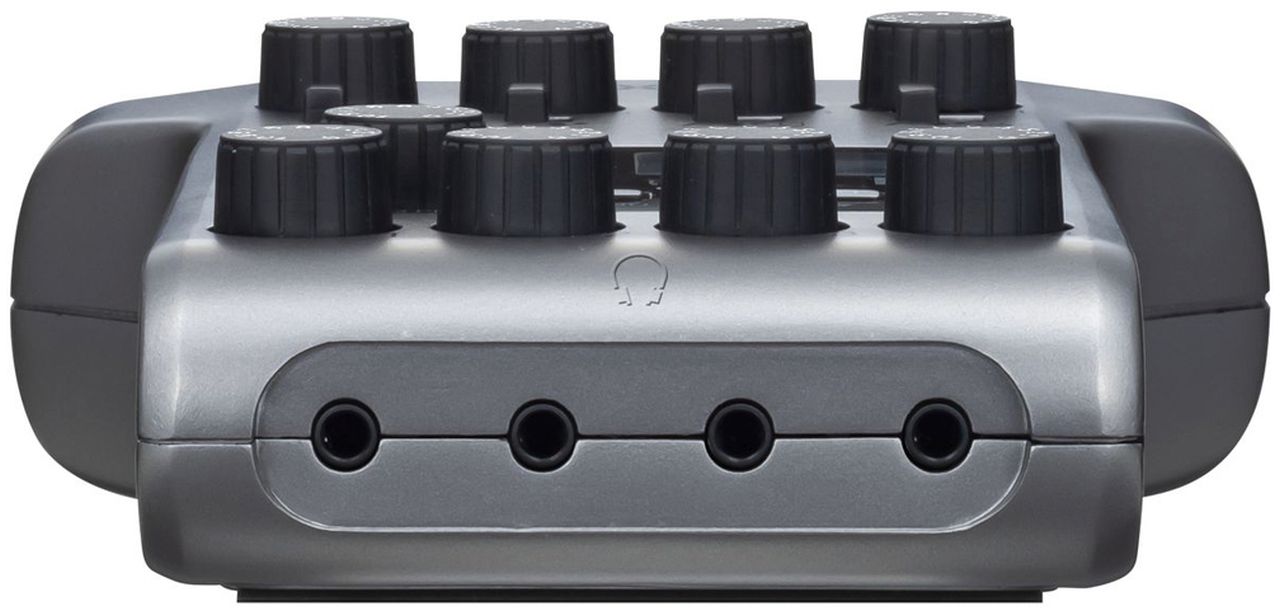

• Headphone 3.5 mm mini jack, stereo
• Phantom power +48 V
• Recorder formats: WAV 44.1 kHz, 16 bit, mono/stereo
• Recording media: 4 to 32 GB SDHC compatible cards (class 10 or higher);
• 64 to 512 GB SDXC-compatible cards (class 10 or higher)
• Audio interface 44.1 kHz, 16-bit, 2 in/2 out
• Power supply Two type AA batteries (alkaline, NiMH or lithium)
• we recommend the use of NiMH
• power supply (ZOOM AD-17): DC 5 V/1 A (USB bus power is supported)
• Estimated operating time with batteries Recording with 44.1 kHz/16 bit/4 channel audio to SD card (48 V is inactive and headphone impedance is 63 Ω)
