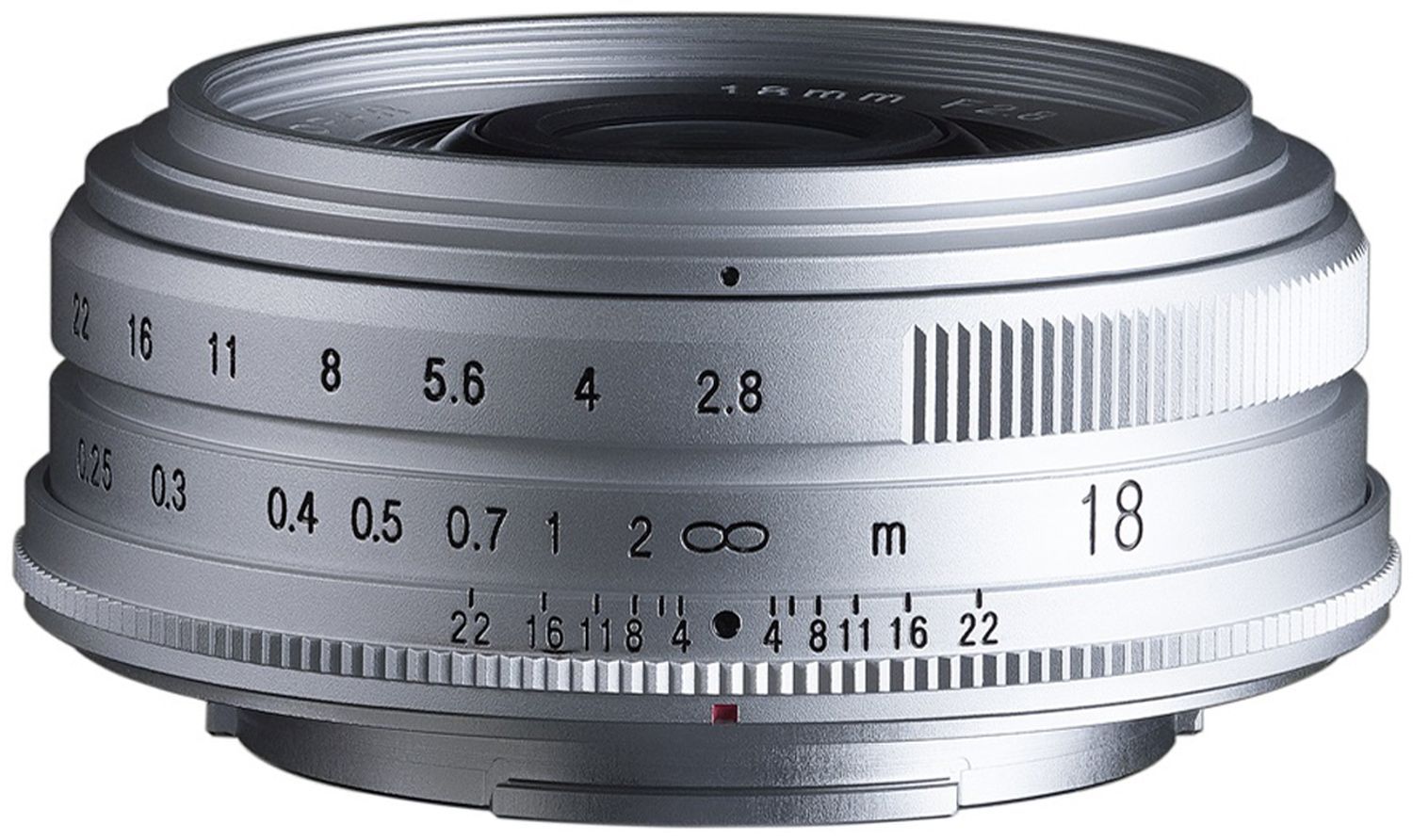

Wide-angle lens with manual focus, which was specifically developed for the APS-C image format and harmonizes perfectly with the image sensor of the Fujifilm X camera system .

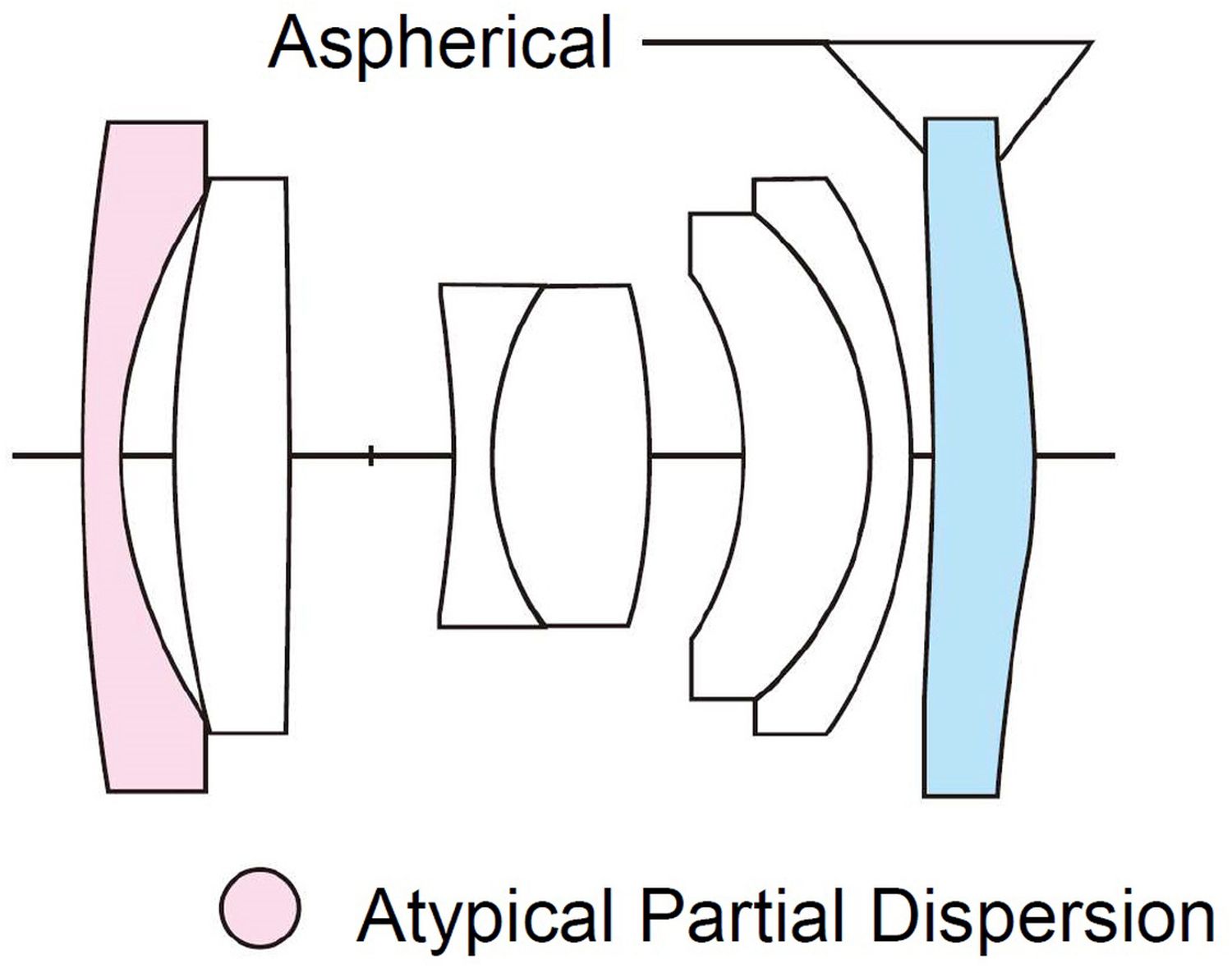

By integrating electronic contacts, the lens ensures reliable communication between the lens and the camera body. It impresses with its outstanding optical performance, based on a double-sided aspherical lens and atypical partial dispersion glass. Despite its high-quality optics, the lens remains extremely compact and has a pancake-style design with an overall length of just 23.5 mm from the bayonet mount.
The COLOR SKOPAR 18 mm F2.8 aspherical X-mount offers an angle of view equivalent to 28 mm in full-frame format, establishing itself as a popular standard for wide-angle lenses. This makes it ideal for snapshots and versatile photo opportunities. The low close-up limit of just 17 cm also opens up exciting perspectives and allows the photographer a high degree of creative freedom
.The focus ring of the lens is provided with a bump that enables simple and precise control. The approximate focus point can be set effortlessly without having to look at the distance scale, making quick focusing easier
.With 10-element aperture blades and 1/3-stop clicks, the lens also produces beautiful bokeh
.The Voigtländer COLOR SKOPAR 18 mm F2.8 aspherical X-Mount is an ideal addition for photographers who value high-quality optics, compact design and precise manual control
.Important notes regarding data communication
There are restrictions in connection with various camera models:
Communication compatible models and firmware (Note *3)
Communication compatible models and firmware *2 *3
X-H2s V3.01 or higher
X-H2 V1.21 or higher
X-Pro3 V1.23 or higher
X-T5 V1.03 or higher
X-S10 V2.10 or higher
X-S20 V1.13 or higher
X-H1 V2.13 or higher
X-T4 V1.25 or higher
X-T3 V4.12 or higher
X-T2 V4.40 or higher *4
X-T30 V1.41 or later
X-T30 II V1.00 or later
X-E4 V1.04 or later
Please check the current support status on the Cosina website.
Notes:
*1 This product is equipped with electronic contacts, but there are limitations. Check the above list of communication compatible models.
*2 It is recommended to change the depth of field display in the housing settings to the film standard (the same value as the depth scale engraved on the product).
*3 If the firmware of the housing is lower than the specified value, the performance may not be displayed or some functions may be limited, so please use the latest firmware.
*4 When used with the X-T2, it is possible to display the f-number by changing the aperture value display from TNo to FNo in the settings.
*5 When using with a model that does not support electronic communication, change the body setting [Release without lens] to "Allow"
General | |
---|---|
Lens type | Wide angle |
Lens type | Fixed focal length |
Colour | silver |
Image sensor | |
---|---|
Sensor format | APS-C |
Electronics | |
---|---|
Focusing | Manual focus |
Lens | |
---|---|
Bayonet mount | Fujifilm X |
Focal length | 18 mm |
max. speed | f2.8 |
Number of blades | 10 |
Opt. composition (groups/elements) | 7 lenses in 5 groups |
min. Close-up | 17 cm |
Lens hood | ✔ |
Filter thread | 73 mm |
Dimensions | |
---|---|
Dimensions | 59,3 x 23,5 mm |
Total length | 23,5 mm |
Diameter | 59,3 mm |
Weight (incl. battery and memory card) | 115 g |
