The Xencelabs Pen Display 24 is a large digital drawing screen for creative professionals .
Specification
Product Type Pen Display
Model Code LPH2412U-A
Product Weight 6.0kg (13.3 lbs)
Product Dimensions 618.50 x 388.00 x 34.70mm (24.4 x 15.3 x 1.4 inches)
Product Color Black

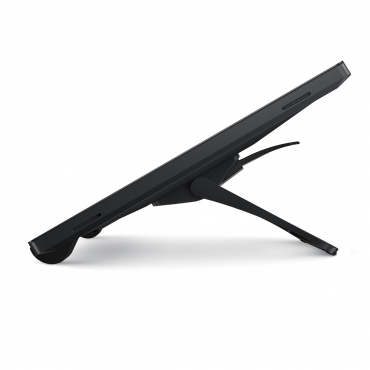

Stand Xencelabs Tilt stand, adjustable from 16 to 72 degrees

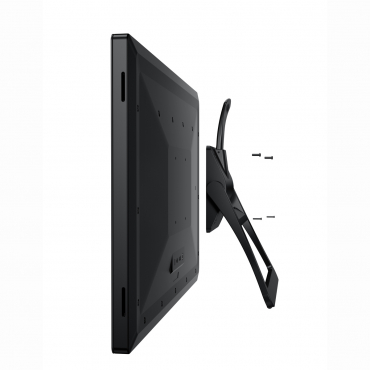

Vesa compliant 100mm X 100mm / 3.9in X 3.9in
Quick keys 40 application customizable keys in 5 sets of 8. Physical knob included
Power input voltage 100 to 240 VAC, 50/60HZ
Output voltage 12V / 5.0A
Security Kensington® Lock Port (lock sold separately) - MicroSaver® 2.0
Temperature 5 to 40 degrees C
Screen size (measured diagonally) 23.8 inches (60.5 cm)
Active area 527.04 × 296.46 mm (20.75 x 11.7 inches)
The Xencelabs Pen Display 24 is a large digital drawing screen for creative professionals. It is designed to improve productivity, comfort and workflow. Designed with feedback and input from industry leading artists. Xencelabs Pen Display 24 is the new choice for the creative community.Xencelabs Pen Display 24 is a large digital drawing screen for creative professionals. It is designed to improve productivity, comfort and workflow. With feedback and input from industry leading artists. Xencelabs Pen Display 24 is the new choice for the creative community. Key benefits include:
Excellent drawing experience with a 24 -inch glass display carefully designed to pull in on traditional media.
The surface is continuous and uninterrupted by buttons or seams, and the
pressure curve has been meticulously adjusted to be beautifully responsive
.
pen response is adjustable to match your drawing style, and
two different pen sizes are provided to accommodate different sized hands and preferences
.
One pen comes with 3-buttons while the other has 2 buttons.
Each has an eraser
Virtually no screen reflections or glare, even in well-lit rooms or where there are ceiling lights
Excellent color performance including Pantone® & Skintone ™ validation
Delivers 1.07 billion colors.
For improved productivity, Xencelabs Quick keys comes with OLED display and physical dial
Allows up to 40 short cut keys per application. The dial has 4 modes for Zoom, rotation, brush size and other functions.
Compatible Software:
PC: Windows® 7 or later (latest service pack/build)
MAC: OS X 10.12 or later (latest update)
Linux - Ubuntu 14.04 or higher, Debian 9.5, CentOS 7.0 or higher, Redhat 7.0 or higher
Compatible hardware:
USB-C port with DisplayPort Alternate mode (UHD),
or DisplayPort (UHD) and USB-C/USB-A,
or HDMI 2.0 (UHD) and USB-C/USB-A
Internet access to download the driver.
In the box:
Pen Display 24 (XMPD24EU)
Tilt Stand
Rubber Feet
Case
3 Button Pen + Eraser V2 (XMCPH35)
Dünner Pen + Eraser V2 (XMCPH36
Wireless Dongle for Quicks Keys(XMCDG)
USB-A to USB-C Adapter
Standard -Nibs x 6pcs/Felt Nibs x 4pcs (XMCMN10/20)
Nib Extracing Ring
3 Button Pen Clip
Thin Pen Clip
Quick Keys (XMCQKFRES)
Holder for Quicks Keys
Drawing Glove (Medium) (XMCLGM)
Sticker
Cleaning cloth
2m USB-C to USB-C (L-shaped) cable
0.6 m USB-C to USB-A 3.0 (standard) cable
2m USB-C to USB-A 3.0 (L-shaped) cable
2m display connector to display cable (L-shaped)
2m HDMI 2.0 to HDMI 2.0 (L-shaped) cable
AC adapter (L-shaped) to plug
