The Atomos Shogun 7 Pro Kit Monitor/Recorder consists of the proven Shogun 7 recorder in a hard case with AtomX Connect 2 and Accessory Kit, enabling long recording and easy streaming on all popular streaming platforms .
The combination of the proven Shogun 7 recorder in a hard case with AtomX Connect 2 and Accessory Kit enables long recording and easy streaming on all popular streaming platforms

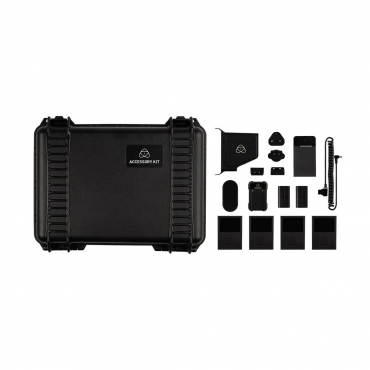

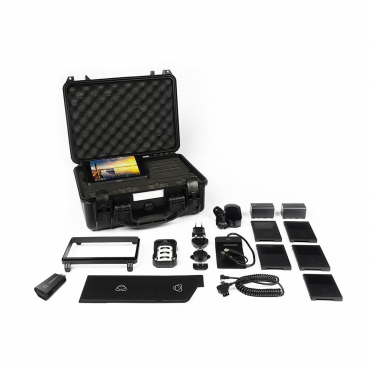

.The Atomos Accessory Kit includes everything you need for a complete workflow with your Shogun 7 monitor/recorder. The kit includes two 5200 mAh batteries, a quick charger, a USB docking station, a D-Tap power cable and power supply, four Master Caddy IIs, and a sun visor. A hardshell flight case for storing and transporting your monitor and all accessories is also included.
The Shogun 7 is an HDR monitor, recorder, and switcher all in one, recording in ProRes RAW up to 4Kp60 and 2K 240p, the latter ideal for super slow-motion recording
. Itoffers one HDMI input, four SDI inputs, one HDMI output and one SDI output and thanks to its countless features it is the ideal tool for events, documentaries, TV/film/cinema productions and other professional video applications.
In addition to monitoring/recording, the device also offers the possibility to switch between 4 live HD SDI video streams and one program
stream.
The Shogun 7 offers up to HDp60 SDI ISOs x 4 recording. Once recording is complete the Atomos xml file can be loaded into the NLE and immediately the timeline fills with all edits. For each ISO and program recording, the mixed down analog stereo channels and embedded 2-channel digital audio are inserted into each recorded stream.
The 7" display is a unique combination of LED and LCD technology, offering deeper blacks than comparable OLED displays while still boasting higher brightness and more vivid colors. The Shogun 7 offers a dynamic range of 15+ stops, a contrast ratio of 1,000,000:1, 3000nit brightness and covers 105% of the DCI-P3 color space.
Using Dolby Vision, the image can be transferred in real time from an SDI or HDMI HDR camera to any Dolby Vision capable TV or monitor via HDMI. AtomOS automatically adjusts the color profile and brightness of the TV, so the optimal pristine HDR image is always on the display.
10 features a new touch user interface that makes all settings, features and tools easily accessible. The Shogun enables instant playback, slow motion, frame-by-frame analysis, SDR playback and much more
.The Shogun 7 shoots in ProRes RAW, offering the highest level of control over the video footage while maintaining the best possible quality. The maximum dynamic range, color accuracy and detail are preserved exactly, making it very easy to edit the video footage in post-production. The Shogun 7 supports ProRes RAW, ProRes, CinemaDNG (up to 30p) and DNxHD formats.
There is no longer a need for a separate audio recorder: simply connect a 48V stereo microphone via a balanced XLR breakout cable (not included), select Mic or Input Levels, and record up to 12 channels of digital audio from HDMI or SDI. The recorded stereo can be reviewed via the 3.5mm headphone jack. There are dedicated levels, gain controls, and image delay settings.

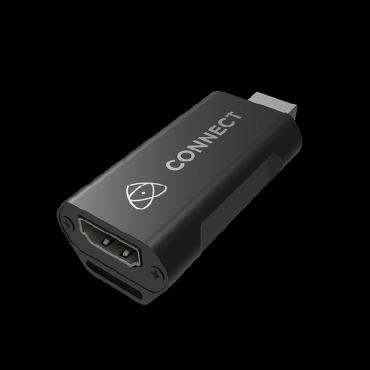

ConnectConvert, Connect, Stream - The Connect 2 from Atomos is a true jack of all trades! Connect 2 represents a compact but powerful streaming solution. Content can be easily shared across popular streaming platforms such as Twitch, YouTube or Zoom. HDMI output is converted to USB for streaming to your PC or Mac.
4K (up to 30p), HD (up to 60p) or 720p (up to 60p) video signals from any HDMI source directly into your PC or laptop with appropriate resolution and frame rate up to a maximum of 1080p60 output and stream directly
.
